LD SYSTEMS U508HHD RADIOMIC A MANO DINAMICO

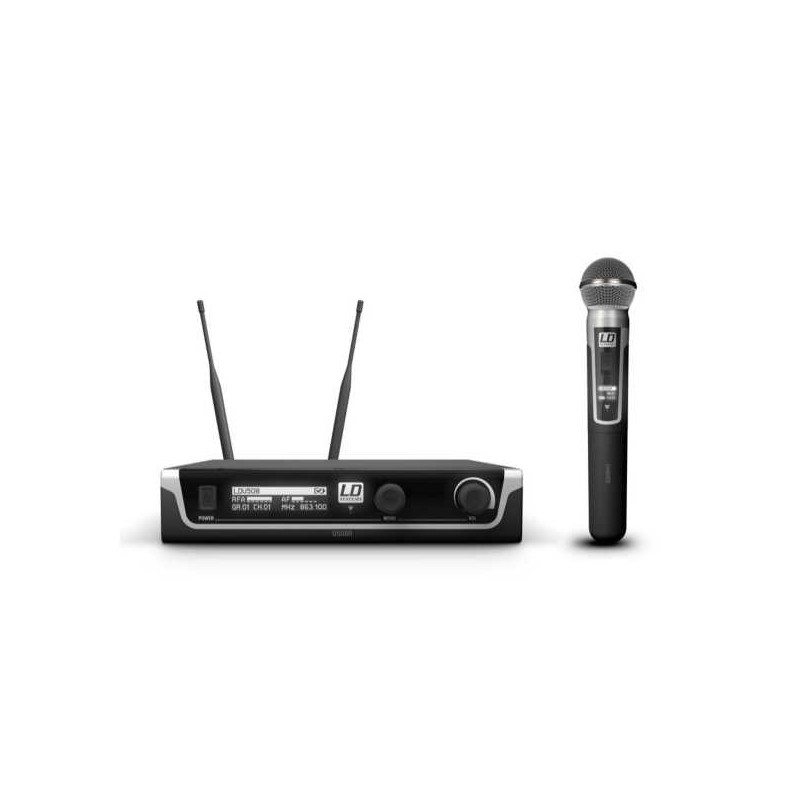

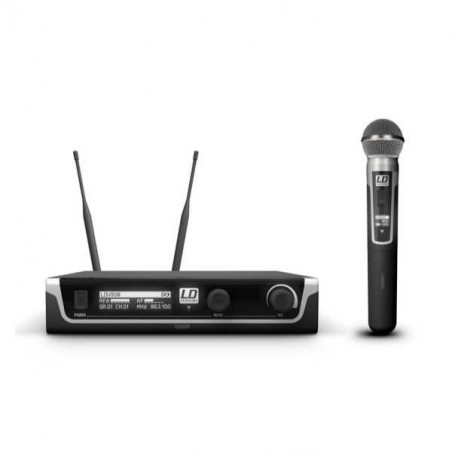

LD Systems U508 HHD - Wireless Microphone System with Dynamic Handheld Microphone
Sistema composto da : 1x LDU508MD + 1x LDU508R

Overview of frequency ranges of vocal sets:
U508 // 823 - 832 MHz + 863 - 865 MHz // six systems can be used simultaneously

CARATTERISTICHE TECNICHE :

MICROPHONE

Product number: LDU508MD
Product type: handheld transmitter
Transmission bands: 823 - 832 MHz, 863 - 865 MHz
Channels: 96 (8 groups of 12 channels)
Microphone type: dynamic
Directivity: cardioid
Frequency response: 60 - 16,000 Hz
RF output power: 2 mW, 10 mW, 30 mW
Controls: power on/off, menu, set
Indicators: OLED display
Power requirements: 2 x 1.5 V AA batteries
Battery life: up to 10 hours depending on type
Length: 257 mm
Diameter: 51 mm
Other features: Pilot tone squelch, switchable gain, switchable RF power, interchangeable capsule


RECEIVER

Product number: LDU508R
Product type: receiver
Type: true diversity
Transmission bands: 823 - 832 MHz, 863 - 865 MHz
Channels: 96 (8 groups of 12 channels)
Antenna inputs: 2
Antenna connector: BNC
Frequency response: 30 - 16,000 Hz
Noise reduction: pilot tone squelch
THD: < 0.1 %
Signal-to-noise ratio: > 100 dB
Audio output: balanced XLR - 12 dBV / 6.3 mm TRS - 18 dBV
Controls: power on/off, digital encoder, volume
Display: OLED
Power requirements: 12 - 18 V DC
Width: 212 mm
Height: 44 mm
Depth: 159 mm
Accessories (included): 2 x HF-antennas, 2 x AA batteries
