LD SYSTEMS U508HHC RADIOMIC.A MANO CONDENSATORE

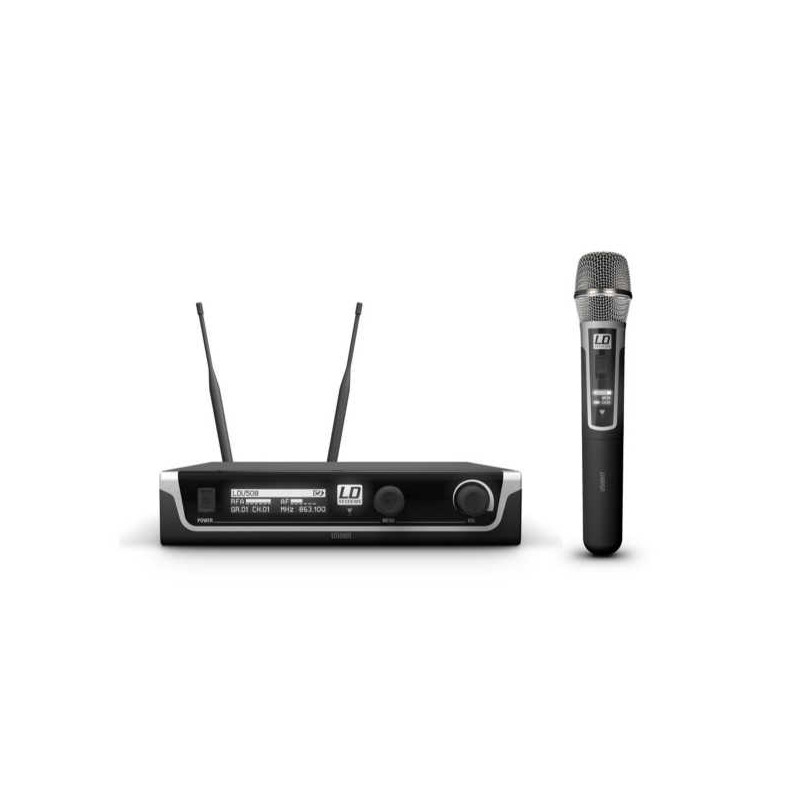

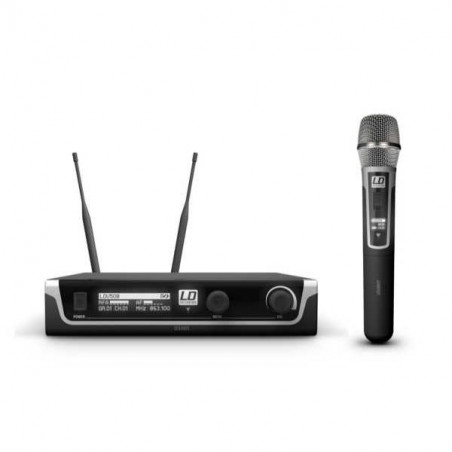

LD Systems U508 HHC - Wireless Microphone System with Condenser Handheld Microphone
Sistema composto da : 1 x LDU508MC trasm. a mano + 1 x LDU508R2 ricevitore diversity

Overview of frequency ranges of vocal sets:
U508 // 823 - 832 MHz + 863 - 865 MHz // six systems can be used simultaneously

CARATTERISTICHE TECNICHE :

MICROPHONE
Model name: LDU508MC
Product type: Handheld microphone transmitter
Radio frequency range: 823 - 832 and 863 - 865 MHz
Channels: 96 (8 groups of 12 channels)
Microphone type: condenser
Directional characteristic: cardioid
Audio frequency response: 60 Hz - 16 kHz
RF output: 10 mW
Controls: Power On/Off
Indicators: OLED Display
Power supply: 2 x 1.5 V AA
Operating time: up to 10 hrs., battery-dependent
Length: 257 mm
Diameter: 51 mm

RECEIVER
Product number: LDU508R
Product type: receiver
Type: true diversity
Transmission bands: 823 - 832 MHz, 863 - 865 MHz
Channels: 96 (8 groups of 12 channels)
Antenna inputs: 2
Antenna connector: BNC
Frequency response: 30 - 16,000 Hz
Noise reduction: pilot tone squelch
THD: < 0.1 %
Signal-to-noise ratio: > 100 dB
Audio output: balanced XLR - 12 dBV / 6.3 mm TRS - 18 dBV
Controls: power on/off, digital encoder, volume
Display: OLED
Power requirements: 12 - 18 V DC
Width: 212 mm
Height: 44 mm
Depth: 159 mm
Accessories (included): 2 x HF-antennas, 2 x AA batteries
