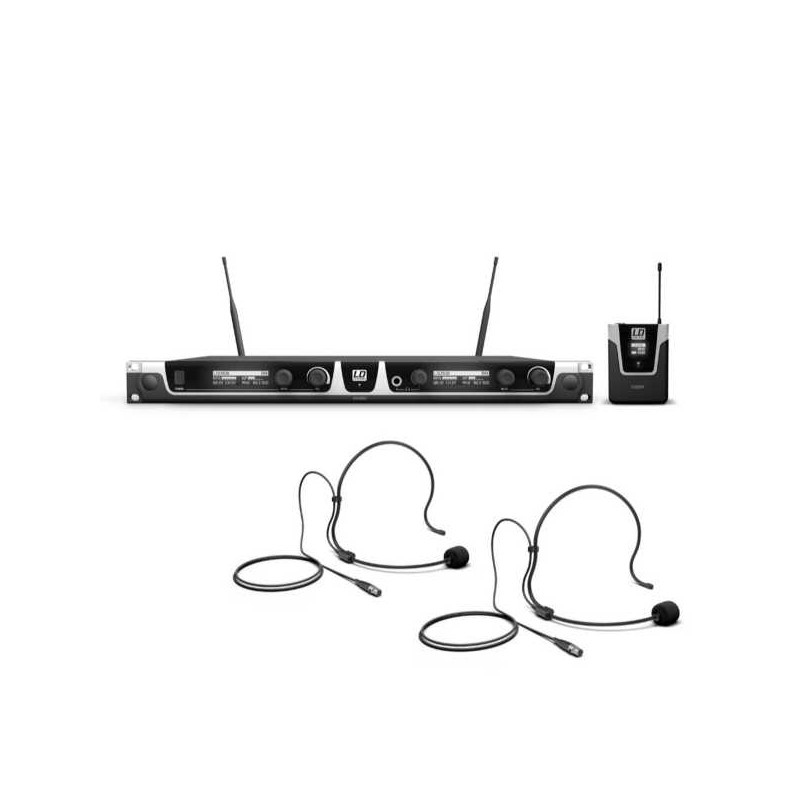

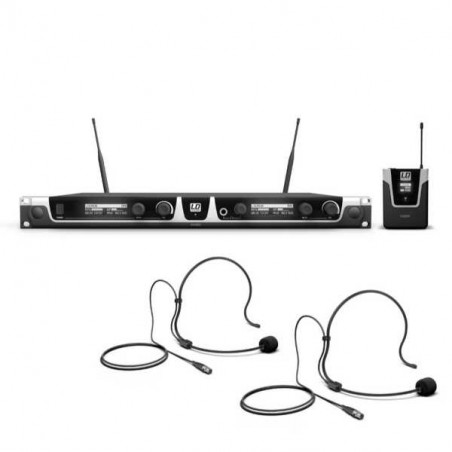

LD SYSTEMS U508BPH2 SISTEMA DUAL RADIOMIC HEADSET NERO

LD Systems U508 BPH2 - Wireless Microphone System with 2 x Bodypack and 2 x Headset
Sistema composto da : 2 x LDU508BP + 1 x LDU508R2 + 2 x LDWS100MH1

Overview of frequency ranges of vocal sets:
U508 // 823 - 832 MHz + 863 - 865 MHz // six systems can be used simultaneously

CARATTERISTICHE TECNICHE :
2 x LDU508BP
1 x LDU508R2
2 x LDWS100MH1

Product number: LDU508BP
Product type: bodypack transmitter
Transmission bands: 823 - 832 MHz, 863 - 865 MHz
Channels: 96 (8 groups of 12 channels)
Inputs: 3-pin mini XLR
Frequency response: 30 - 16,000 Hz
RF output power: 2 mW, 10 mW, 30 mW
Controls: power on/off, menu, set
Indicators: OLED display
Power requirements: 2 x 1.5 V AA batteries
Battery life: up to 10 hours depending on type
Width: 65 mm
Height: 86 mm
Depth: 23 mm
Other features: pilot tone squelch, switchable gain, switchable RF power, detachable antenna

Model name: LDU508R2
Product type: Dual Receiver
Type: True Diversity
Radio frequency range: 823 - 832 and 863 - 865 MHz
Channels: 2 x 96 (8 groups of 12 channels)
Antenna inputs: 2
Antenna connector: BNC
Frequency response: 30 Hz - 16 kHz
Noise suppression: Squelch
THD: < 0.1 %
S/N ratio: > 100 dB
Unbalanced audio output: 2 x XLR - 12 dBV (600 ohms) / 6.3 mm TRS - 18 dBV (3 kohms)
Controls: Power On/Off, Set, Up, Down, ASC
Indicators: OLED display, 2 x 6-segment RF (A/B), antenna active (A/B), 7-segment AF
Power supply: 12 - 18 V DC
Width: 484 mm
Height: 44 mm
Depth: 200 mm
