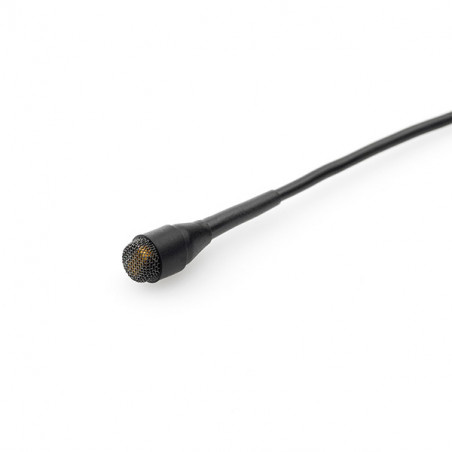

DPA SC4061BM MICROPHONE LAVALIER OMNI LO-SENS NERO

d:screet™ Slim 4061 omnidirectional microphone, lo-sens

Features:
Pristine audio quality
- Completely invisible when used with Button-Hole Mount or Concealer
- Adapts to all pro wireless systems

Specifications
d:screet™ SLIM 4061 OMNIDIRECTIONAL MICROPHONE, LO-SENS

Directional pattern: Omnidirectional
Principle of operation: Pressure
Cartridge type: Pre-polarized condenser
Frequency range: 20 Hz - 20 kHz
Frequency range, ±2 dB: 20 Hz - 20 kHz, 3 dB soft boost at 5 - 20 kHz
Button-hole mount: 20 Hz - 18 kHz, 5 dB soft boost at 5 - 18 kHz
Sensitivity, nominal, ±3 dB at 1 kHz6 mV/Pa' -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 71 dB(A)
Total harmonic distortion (THD): < 1% up to 123 dB SPL peak, < 1% up to 120 dB SPL RMS sine
Dynamic range: Typ. 97 dB
Max. SPL, peak before clipping: 144 dB
Output impedance: From MicroDot: 30 - 40 O. From DAD6001: 100 O
Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
Output balance principle: Signal balanced with DAD6001-BC XLR Adapter
Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR adapter
Power supply (for full performance): Min. 5 V to max. 50 V through DPA adapter for wireless systems, 48 V phantom power ±4 V with DAD6001 XLR adapter
Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
Connector: MicroDot
Color: nero
Weight: 8.5 g (0.3 oz) incl. Cable and MicroDot connector
Cable length: 1.8 m (5.9 ft)
Cable color: Black
Cable diameter: 1.6 mm (0.06 in)
Polarity: Positively increasing sound pressure produces positive-going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)
Temperature range: -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH): Up to 90%
