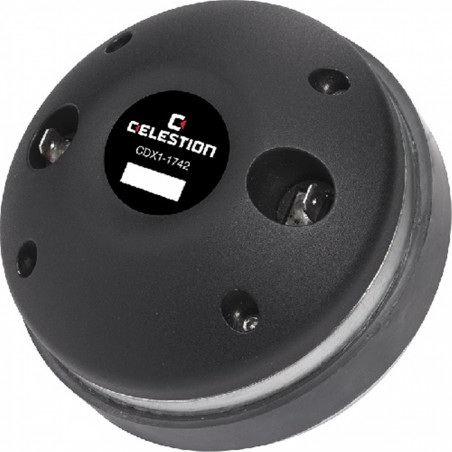

CDX1-1742 50W 8ohm HF Ferrite

Caratteristiche

-2,000Hz recommended min. crossover freq (12dB/oct)

-Single piece polyimide diaphragm and surround

-Sound Castle soft clamping diaphragm assembly

Specifiche Generali

Power rating(1): 50Wrms

Continuous power rating(2): 100W

Nominal impedance: 8ohm

Frequency range: 1200-20,000Hz

Sensitivity(3): 107dB

Recommended min. crossover (12dB/oct): 2,200Hz

Voice coil diameter: 44mm/1.75in

Voice coil material: Edgewound copper clad aluminium

Magnet type: Ferrite

Diaphragm material: Polyimide

Surround material: Polyimide

Informazioni di Montaggio

Width: 100mm/4in

Depth: 53.5mm/2.1in

Weight: 1.43kg/3.1lb

Fitting: Flange (2/3 M6 holes on 76/57mm, 3.0/2.24in PCD)

Throat exit: 25mm/1in

Trombe Compatibili

H1-9040P , H1-7050 "No Bell"

Note

(1)Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.

(2)Continuous Power Rating is defined as 3dB greater than the AES rating.

(3)Measured on axis at 1W, 1m, using typical horn, in 2pi anechoic environment.
