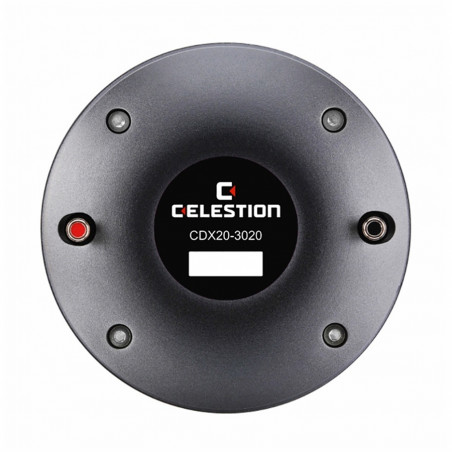

CDX20-3020 100W 8ohm HF Ferrite

Caratteristiche

- 2" exit ferrite magnet compression driver with 3" copper clad aluminium voice coil

- 100Wrms (AES standard) power handling and 107dB sensitivity

- Next generation Sound Castle™ soft clamping assembly reduces diaphragm stress for decreased distortion and even greater reliability of performance

- Single piece titanium diaphragm and surround

- Finite element analysis (FEA) used to optimise magnetic, acoustic and electromechanical design

Specifiche Generali

Power rating(1): 100Wrms

Continuous power rating(2): 200W

Nominal impedance: 8ohm

Frequency range: 500-18,000Hz

Sensitivity(3): 107dB

Recommended min. crossover (12dB/oct): 800Hz

Voice coil diameter: 75mm/3in

Voice coil material: Edgewound copper clad aluminium

Magnet type: Ferrite

Diaphragm material: Titanium

Surround material: Titanium

Informazioni di Montaggio

Width: 180mm/7in

Depth: 68mm/2.7in

Weight: 4.9kg/10.8lb

Fitting: Flange (4 x M6 holes on 102mm/4.02inch PCD)

Throat exit: 50mm/2in

Note

(1)Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.

(2)Continuous Power Handling is defined as 3dB greater than the AES rating.

(3)Measured on axis at 1W, 1m, using typical horn, in 2 anechoic
