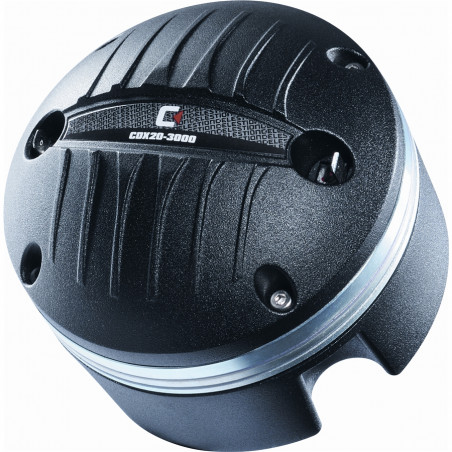

CDX20-3000 75W 8ohm HF Neodimio

Caratteristiche

- 2" exit, neodymium magnet, 3" voice coil compression driver provides 75Wrms (AES standard) power handling and 107dB sensitivity

- Patented phase plug design method suppresses cavity resonances at higher frequencies

- Titanium diaphragm, deep drawn to increase stiffness and reduce distortion

- Lower compression ratio reduces air non-linearity and allows for higher maximum SPL

- Rolled polyimide surround improves stiffness control, further lowering distortion

- Curved coherent wavefront, optimised for horn loading

Specifiche Generali

Power rating(1): 75Wrms

Continuous power rating(2): 150W

Nominal impedance: 8/16ohm

Sensitivity(3): 107dB

Frequency range: 500-18,000Hz

Recommended min. crossover (12dB/oct): 800Hz

Voice coil diameter: 75mm/3in

Voice coil material: Edgewound copper clad aluminium

Magnet type: Neodymium

Diaphragm material: Titanium

Surround material: Polyimide

Informazioni di Montaggio

Maximum width: 125mm/5.0in

Depth: 94mm/3.7in

Weight: 2.0kg/4.4lb

Fitting: Flange (4 x M6 holes on 102mm/4in PCD)

Throat exit: 50.8mm/2in

Note

(1)Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.

(2)Continuous Power Handling is defined as 3dB greater than the AES rating.

(3)Measured on axis at 1W, 1m, using typical horn, in 2pi anechoic environment.
