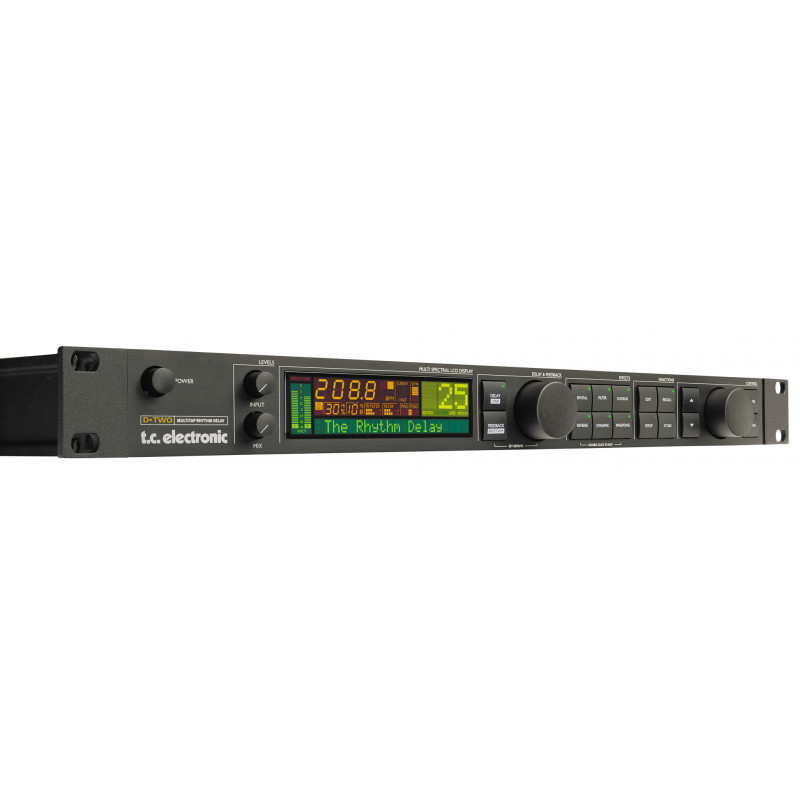

TC ELECTRONIC DTWO

EFFETTO DELAY A RACK

Renowned as a manufacturer of pristine, high quality solutions for the professional audio industry, the heritage of TC Electronic encompasses more than 20 proud years of know-how in developing cutting-edge digital technology with state-of-the-art sound quality combined with the world’s most sophisticated, yet intuitive, user interface. Our heritage of Classic delays inspired us to introduce the truly musical Rhythm Tap feature: Not only tempo, but actual rhythm patterns can be tapped directly - or quantized according to a specific tempo and subdivision. The delays and rhythm patterns can be up to 10 seconds each. Control the exact number of repeats with Absolute Repeat Control.

Caratteristiche
DIGITAL INPUTS AND OUTPUTS
Connectors RCA Phono (S/PDIF)
Formats S/PDIF (24 bit), EIAJ CP-340, IEC 958
Output Dither HPF/TPDF dither 24/20/16/8 bit
Sample Rates 44.1 kHz, 48 kHz
Processing Delay 0.1 ms @ 48 kHz
Frequency Response DIO DC to 23.9 kHz ± 0.01 dB @ 48 kHz
ANALOG INPUTS
Connectors 1/4" phone jack, balanced
Impedance, bal/unbal 21 kOhm / 13 kOhm
Max. Input Level +24 dBu
Min. Input Level for 0 dBFS 0 dBu
Sensitivity @ 12 dB headroom -12 dBu to +12 dBu
A to D Conversion 24 bit, 128 x oversampling bitstream
A to D Delay 0.65 ms / 0.70 ms @ 48 kHz / 44.1 kHz
Dynamic Range 100 dB typ, 20 Hz - 20 kHz
THD typ < 92 dB (0,0025 %) @ 1 kHz
Frequency Response +0/-0.1 dB @ 48 kHz, 20 Hz to 20 kHz
Crosstalk <-95 dB, 20 Hz to 20 kHz
ANALOG OUTPUTS
Connectors 1/4" phone jack, balanced
Impedance bal/unbal 40 Ohm
Max. Output Level +20 dBu (balanced)
Output Ranges Balanced: 20/14/8/2 dBu
Unbalanced: 14/8/2 dBu
D to A Conversion 24 bit, 128 x oversampling bitstream
D to A Delay 0.63 ms / 0.68 ms @ 48 kHz / 44.1 kHz
Dynamic Range 104 dB typ, 20 Hz to 20 kHz
THD typ <-94 dB (0.002 %) @ 1 kHz, +20 dBu Output
Frequency Response +0/-0.5 dB @ 48 kHz, 20 Hz to 20 kHz
Crosstalk <-100 dB, 20 Hz to 20 kHz
EMC
Complies with EN 55103-1 and EN 55103-2
FCC part 15, Class B, CISPR 22, Class B
SAFETY
Certified to IEC 65, EN 60065, UL6500 and CSA E65
ENVIRONMENT
Operating Temperature 32° F to 122° F (0° C to 50° C)
Storage Temperature -22° F to 167° F (-30° C to 70° C)
Humidity Max. 90 % non-condensing
CONTROL INTERFACE
MIDI In/Out/Thru: 5 Pin DIN
Pedal 1/4" phone jack
GENERAL
Finish Anodized aluminum front, Plated and painted steel chassis
Display 23 character / 280 icon STN-LCD display
Dimensions 19" x 1.75" x 8.2" (483 x 44 x 195 mm)
Weight 4.1 lb. (1.85 kg)
Mains Voltage 100 to 240 VAC, 50 to 60 Hz (auto-select)
Power Consumption <15 W
WARRANTY
Labor and Parts 1 year
