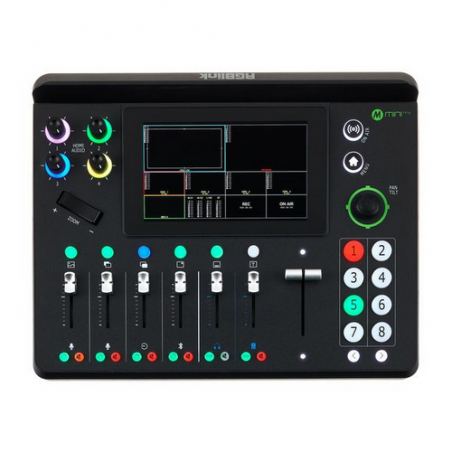

RGB LINK MINI MX PRODUCTION MIXER - 4CH

Production Mixer

4 Channel video and 8 channel audio mixer with PTZ camera control, recording and streaming

4K multi-channel production mixer

Integrated 5.5" touchscreen for menu operation

4 HDMI 2.0 inputs

Resolutions up to 4K@60

2 HDMI 1.3 outputs for monitoring multi-picture PVW and PGM

2 MIC inputs, line input, audio stream via Bluetooth, two audio outputs

Save up to 16 scene presets

One-click recall of presets

Supports multilayer overlay, layer scaling and cropping

Chroma Key support

Mix for embedded and external HDMI audio

One-button recording

Hard disk recording capacity of up to 2T

5-Direction joystick for controlling up to 4 PTZ cameras

Control via computer and mobile phone

15 Switch FX

Quickly switch between portrait and landscape format with one button

Streaming of up to 2 platforms simultaneously via IP and 32 platforms via TAO APP

1/4"-20 tripod thread and VESA mount 100 x 100 mm on the underside

Power supply: Type-C 12V/3A max 36W

Dimensions: 280 x 222.6 x 63.5 mm

Weight: 1480 g

Connections:

Input: 4x HDMI2.0 (HDMI-A) 4K

Output: 2x HDMI 2K (HDMI-A), 1x USB-C Recording, 1x USB-C Stream

Audio input: 2x XLR/6,35 mm TRS Jack, 1x 6,35 mm TRS Klinke

Audio output: 1x 6,35 mm TRS Jack, 1x 3,5 mm Stereo Klinke Ein-/Ausgang

Network: 1x RJ45 LAN

Power supply: Type-C 12V/3A max 36W

Input Resolution:

SMPTE: 720p@50/60 |1080i@50 | 1080p@23.98/24.97/50/59.94/60

Vesa: 1024×768@60 | 1280×720@60 | 1280×768@60 | 1280×800@60 | 1280×1024@60 | 1360×768@60 | 1366×768@60 | 1440×900@60 | 1600×1200@60 | 1680×1050@60 | 1920×1080@60 | 1920×1200@60 | 3840×2160@60 | 4096x2160@60

Output Resolution:

SMPTE: 720p@50/60 | 1080p@23.98/24.97/50/59.94/60

Vesa: 1024×768@60 | 1280×720@50/60 | 1280×768@60 | 1280×1024@60 | 1360×768@60 | 1920×1080@6

Streaming in H.265

Recording in H.264

Video:

Video Formate: HDMI 2.0 | HDCP 2.2

Video Latenz <4 frames

Record Format: MP4 | WAV

Disk Format: FAT32( =32 GB) | exFAT(64GB~2T)

Audio:

Audio Format: HDMI Linear PCM, 24 bits/48 kHz, 2 ch

USB Linear PCM, 16 bits/48 kHz, 2 ch

Supported Standards: HDMI 2.0, USB 3.0, H.265 ITU-T H.265/ ISO/IEC 23008 2

Colour processing and sampling: RGB 8bit 4:4:4 YUV

Scope of delivery:

1 x 230 V power supply unit with USB-C PD adapter and USB-C connection cable

USB-C to USB-C data cable

USB-C to USB-A data cable
