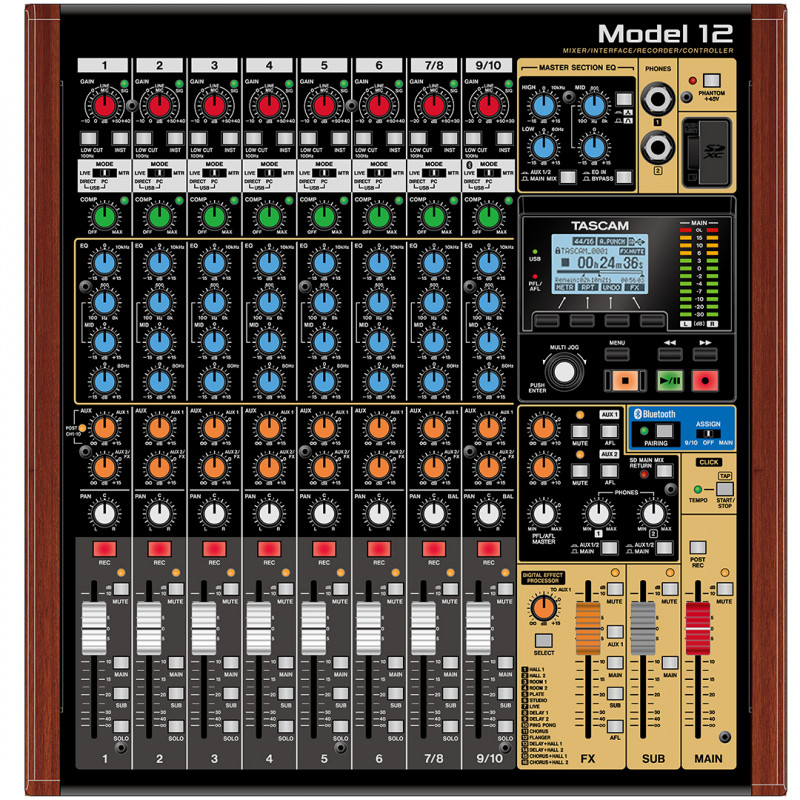

TASCAM MODEL 12

With multi-track recorder, audio interface and DAW control functions
10-Channel mixer
12-Track recording is possible in WAV/BWF format on SD/SDHC/SDXC cards up to 128 GB
44.1/48 kHz
16/24 Bit
1-Button compressor for all input channels
Switchable Low-Cut
3-Band EQ with tunable mids for all mono channels
Master EQ
Overdubbing
Punch in / out
Integrated audio interface for 12 channels (10 inputs plus stereo sum)
LC-Display
12-Segment LED meter
Integrated effects processor
Switchable phantom power: +48 V
Power adapter included
Dimensions: 343 x 99 x 360 mm (W x H x D)
Weight: 4.3 kg

Connectors:

8x Microphone/Line input combo XLR/jack: 6.3 mm (channels 1-6, 7, 9 can be used as instrument inputs)
2x Line output XLR
2x Sub output: 6.3 mm jack
2x AUX output: 6.3 mm jack
2x Insert: 6.3 mm jack (channel 1 + 2)
Foot switch input: 6.3 mm jack
Click output: 6.3 mm jack with tap tempo function
2x Stereo headphone output: 6.3 mm jack
MIDI input and output
USB
