JTS KA10 PACKAGE - LAVALIER PER VIDEOCAMERA

Sistema wireless per telecamera composto da Ricevitore + trasmett.Beltpack + mic. Lavalier CM201 e relativi cavi collegamento tra Ricevitore e Telecamera

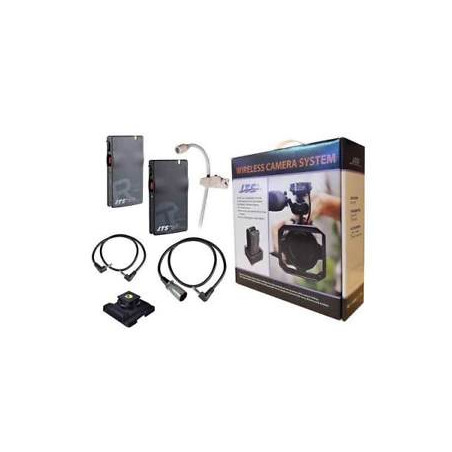

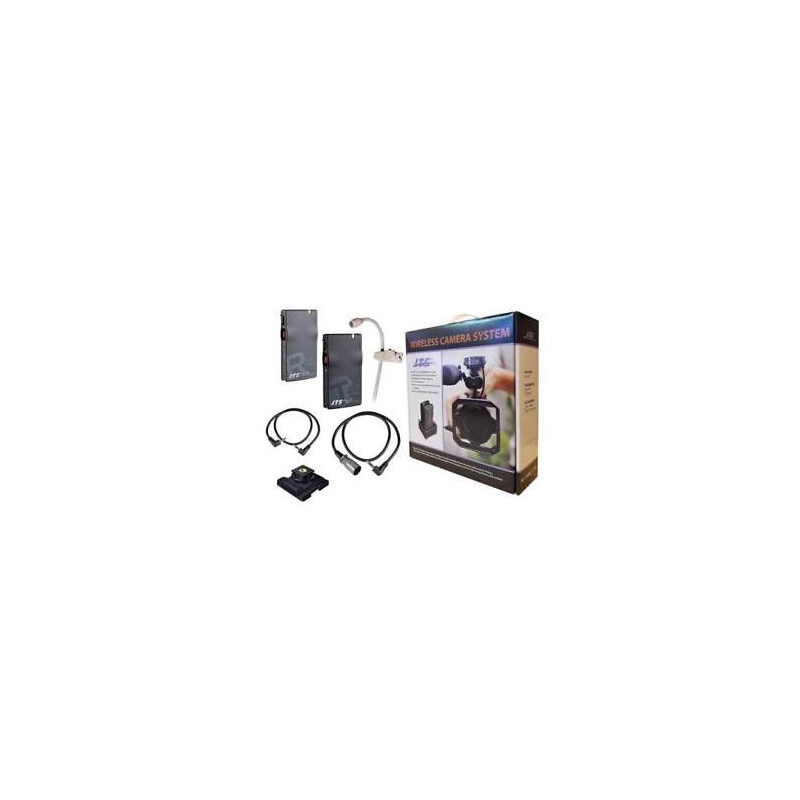

Componenti :

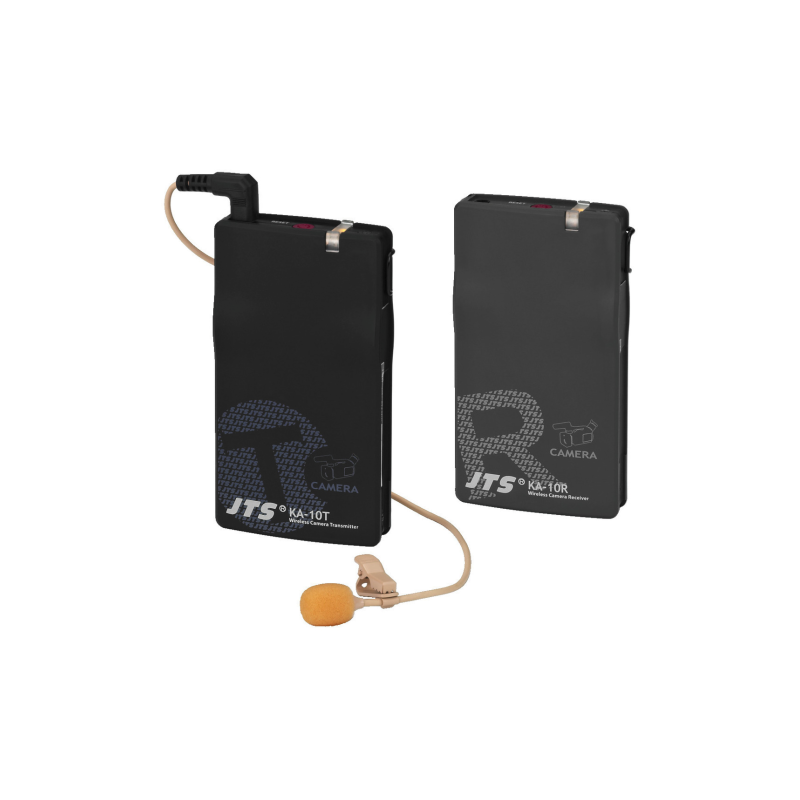

KA 10R ricevitore
KA 10T trasmettitore
KAC 50 cavo per telecamera(50 cm),
KAC150 cavo per telecamera 150cm,
TG 10 CH2 caricatoreperbatterie,
CM 201microfono a Lavalier


KA10T (Transmitter):

Internal Microphone Omni-directional Condenser Microphone
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
RF Outputs 10mW
Stability ±10kHz
Frequency Deviation ±48kHz
LED Display Channel
Controls Power On/Off, Channel selection,
Volume control
Spurious Emissions <-50 dbc="" br="">Audio Frequency Response 40~18,000 Hz
Microphone input connector 1/8” Mono Phone Jack
Battery life 14 hours typical
Battery Lithium cell (3.7V, 1300mAh)
Dimension(mm) 54mm(W)* 17mm(D)* 99mm(H)

KA10R (Receiver):

Frequency Preparation. PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
LED Display Channel
Controls Power On/Off, Channel selection
Volume control
Audio Frequency Response 40~18,000 Hz
Output connector 1/8” Dummy stereo Phone Jack
Battery life 14 hours typical
Battery Lithium cell (3.7V, 1300mAh)
Dimension(mm) 54mm(W)* 17mm(D)* 99mm(H)
