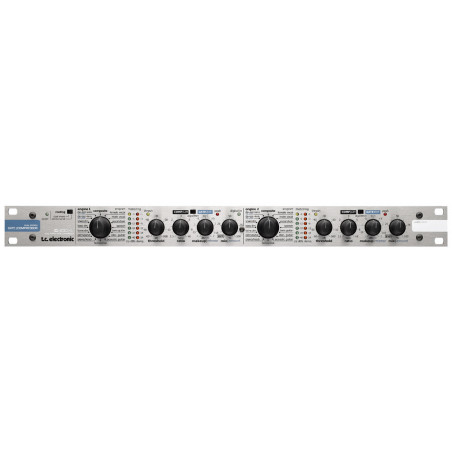

TC ELECTRONIC C 400 XL

PROCESSORE DI SEGNALE

The C400XL is a supreme Dual Gate|Compressor specially designed for audio professionals on the road. Combining award-winning multiband compression technology with an extremely fast and intuitive user interface as well as a super silent click free gate, the C400XL is made for the uncompromising live engineer. The C400XL uses advanced TC Electronic multiband dynamics technology to compress any source - from vocals and percussion to guitars and even keyboards. If you want the sound of a full band/one band compressor you can do that too' even de-essing and de-hiss is an option. The inherent transparency of the multiband compressor brings out the qualities of the source material, yet secures a firm and consistent level. The optimized and super-fast gate offers a click free and high precision gating of any source.

Caratteristiche
# Balanced analog XLR
# Balanced digital (AES/EBU)
# Precision gating - ultra fast and click free
# De-essing
# Dual engine compressor or gate
# High resolution input and gain reduction metering
# Threshold LED indication
# True dual mono, stereo or serial operation
# Brickwall limiting for peak stop and hot levels
# Dual band expansion for non-percussive sources
Specifiche tecniche
# Digital Input and Output
# Connector XLR (AES/EBU)
# Formats AES/EBU (24bit)
# Sample Rates 48 kHz. (44.1 kHz only @ Digital Input)
# Processing Delay 0.08 ms @ 48 kHz
# Frequency Response DIO DC to 23.9 kHz ± 0.01 dB @ 48 kHz
# Analog Inputs
# Connectors XLR balanced (pin 2+, pin 3-)
# Impedance, Bal / Unbal 20 kOhm / 11 kOhm
# Max. Input Level @ 0 dBFS +21 dBu
# A to D Conversion 24 bit, 128 x oversampling bitstream
# A to D Delay 0.9 ms @ 48 kHz
# Dynamic Range Typ < -110 dB, 22 Hz to 22 kHz
# THD Typ < -102 dB (0.0008 %) @ 1 kHz, -1 dBFS
# Frequency Response +0/-0.1 dB, 20 Hz to 20 kHz
# Crosstalk Typ < -115 dB, 20 Hz to 20 kHz
# Analog Outputs
# Connectors XLR balanced (pin 2+, pin 3-)
# Max. Output Level +21 dBu
# D to A Conversion 24 bit, 128 x oversampling bitstream
# D to A Delay 0.58 ms @ 48 kHz
# Dynamic Range typ < -110 dB typ, 22 Hz to 22 kHz
# THD typ < -94 dB (0.002 %) @ 1 kHz, +21
# Frequency Response dBu+0/-0.1 dB, 20 Hz to 20 kHz
# Crosstalk typ < -100 dB, 20 Hz to 20 kHz
# Environment
# Operating Temperature 32° F to 122° F (0° C to 50° C)
# Storage Temperature v-22° F to 167° F (-30° C to 70° C)
# Humidity Max. 90 % non-condensing
# Control Interface
# MIDI In/Out 5 Pin DIN
# General
# Finish Anodized aluminum front. Plated and coated steel chassis
# Meter 2 x 6 LED’s in each channel
# Dimensions 19” x 1.75” x 4.2” (483 x 44 x 105.6 mm)
# Weight 3.3 lb. (1.5 kg) (auto-select)
# Mains Voltage 100 to 240 VAC, 50 to 60 Hz
# Power Consumption <15 w="" br=""># Warranty parts and Labor 1 year
