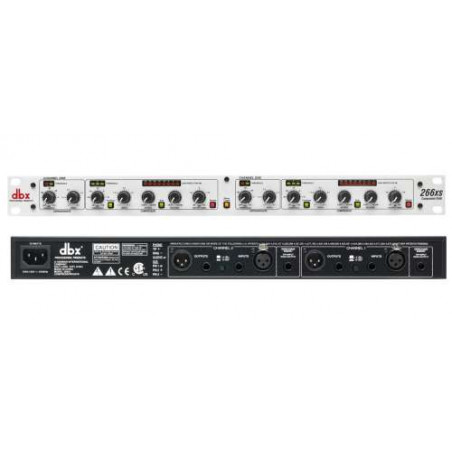

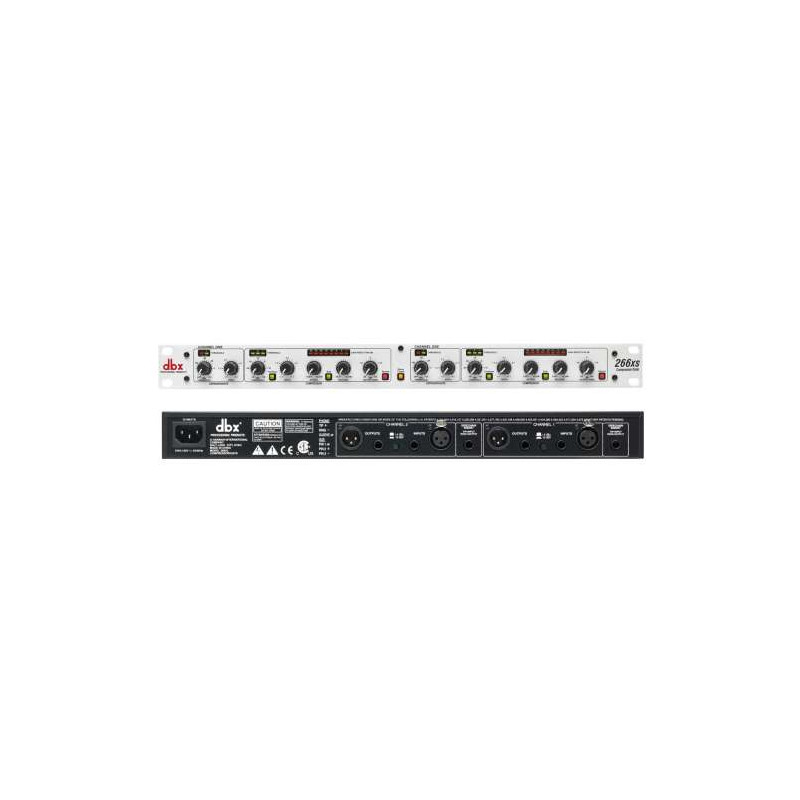

DBX 266XS

COMPRESSORE LIMITER GATE

L'aggiunta di un DBX266XS Compressor / Limiter / Gate al tuo suono dal vivo o in studio ti permette avere più controllo della dinamica per creare un suono più pulito e professionale. Avere un compressore nella vostra catena audio dà la possibilità di appianare livelli disomogenei, aggiungere sustain alle chitarre e dare un suono più profondo alla tua batteria. Inoltre aggiunge una maggiore chiarezza alle voci facendole risaltare rispetto agli strumenti circostanti.
Specifiche tecniche
INPUTS
Connector: 1/4" TRS, female XLR (pin 2 hot)
Type: Electronically balanced/unbalanced, RF filtered
Impedance: 40kO balanced, 20kO unbalanced
Maximum Level: >+22dBu Balanced or Unbalanced
OUTPUTS
Connector: 1/4" TRS, female XLR (pin 2 hot)
Type: Impedance-balanced/unbalanced, RF filtered
Impedance (+4dBu): 100O balanced, 50O unbalanced
Impedance (-10dBu): 1kO balanced, 500O unbalanced
Maximum Level: >+21dBu balanced/unbalanced into 2kO or greater' >+18dBm balanced/unbalanced (into 600O)
SIDECHAIN INSERT
Connector: 1/4" TRS Phone, Normalled: Ring = Output (send)' Tip = Input (return)
Impedance: Tip = >10kO (Input), Ring = 2kO (Output)
Maximum Level: Tip = >+22dBu (Input), Ring = >+20dBu (Output)
COMPRESSION
Threshold Range: -40dBu to +20dBu
Threshold Characteristic: Selectable OverEasy® or hard knee
Compression Ratio: 1:1 to Infinity:1
Attack Time: Scalable Program-Dependent AutoDynamic™
Release Time: Scalable Program-Dependent AutoDynamic™
EXPANDER/GATE
Threshold Range: -60dBu to +15dBu
Expansion Ratio: 1:1 to 4:1
Attack Time: <100µSec
Release Time: Program-Dependent
SYSTEM
Bandwidth: 0.35Hz - 90kHz, +0/-3dB
Frequency Response (Flat): 20Hz - 20kHz' +0/-0.5dB,
Noise: <-93dBu, unweighted (22kHz measurement bandwidth)
THD + N: <0.2%' Any Amount of Compression @1kHz
Intermodulation Distortion: <0.2% SMPTE
Dynamic Range: >114dB, unweighted
Interchannel Crosstalk <-95dB, 20Hz to 20kHz
CMRR: >40dB, typically >55dB at 1kHz
Stereo Coupling: True RMS Power Summing™
POWER
Power Consumption: 15 Watts Maximum
Operating Voltage: 100 VAC 50/60Hz' 120VAC 60Hz' 230 VAC 50/60 Hz
Operating Temperature: 0°C to 45°C (32°F to 113°F)
PHYSICAL
Dimensions: 1.75" x 5.75" x 19" (4.45 cm x 14.6 cm x 48.26 cm )
Weight: Net weight: 4.84 lbs (2.19 kg)
Shipping weight: 6.6 lbs (2.99 kg)
Note*: 0dBu = 0.775Vrms
