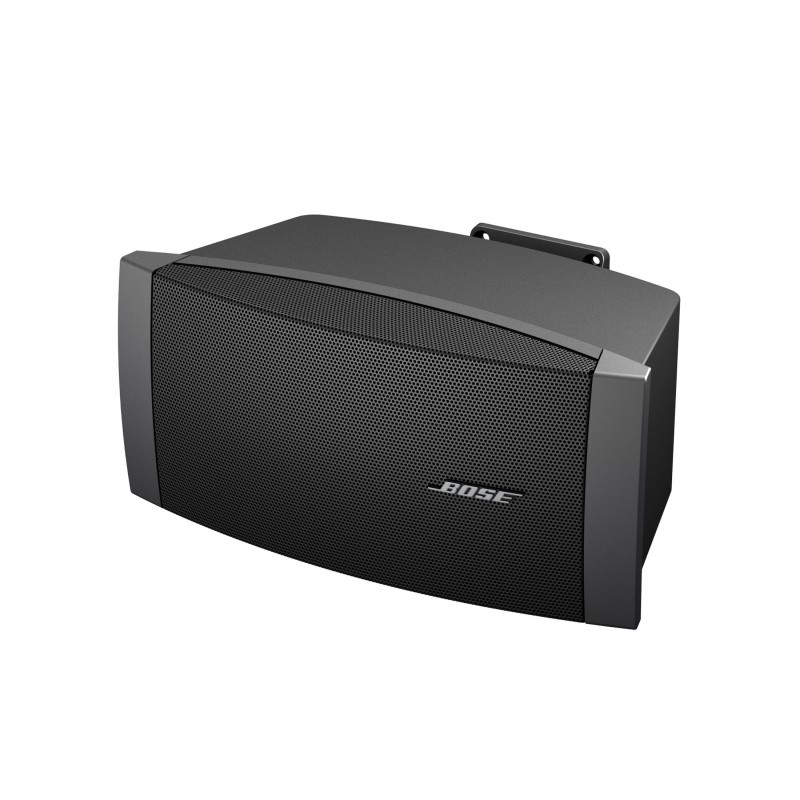

BOSE FREESPACE DS100SE DIFFUSORE PASSIVO 2 VIE - 100W - BLACK

The Bose® FreeSpace DS 100SE is the premier member of the DS loudspeaker family. It is a high-performance, full-range surface-mount

loudspeaker designed for foreground music and speech reproduction in a wide range of installed applications. The DS 100SE features a

rotatable array that delivers a 180° x 75° coverage pattern and a frequency range down to 60 Hz

System Performance

Frequency Response (+/-3 dB)1

75 Hz - 18 kHz

Frequency Range (-10 dB)1

60 Hz - 20 kHz

Nominal Dispersion 180° H x 75° V

Recommended High-Pass Filter 55 Hz high-pass filter

Loudspeaker EQ Recommended

Overload Protection Lamp

Long-Term Power Handling2

100 W (400 W peak)

Sensitivity (SPL / 1 W @ 1 m)3

85 dB SPL

Maximum SPL @ 1 m4

105 dB SPL (111 dB SPL peak)

Nominal Impedance 8 Ω (transformer bypassed)

Transformer Taps (70/100 V) 70 V: 12.5 W, 25 W, 50 W, 100 W

100 V: 25 W, 50 W, 100 W
