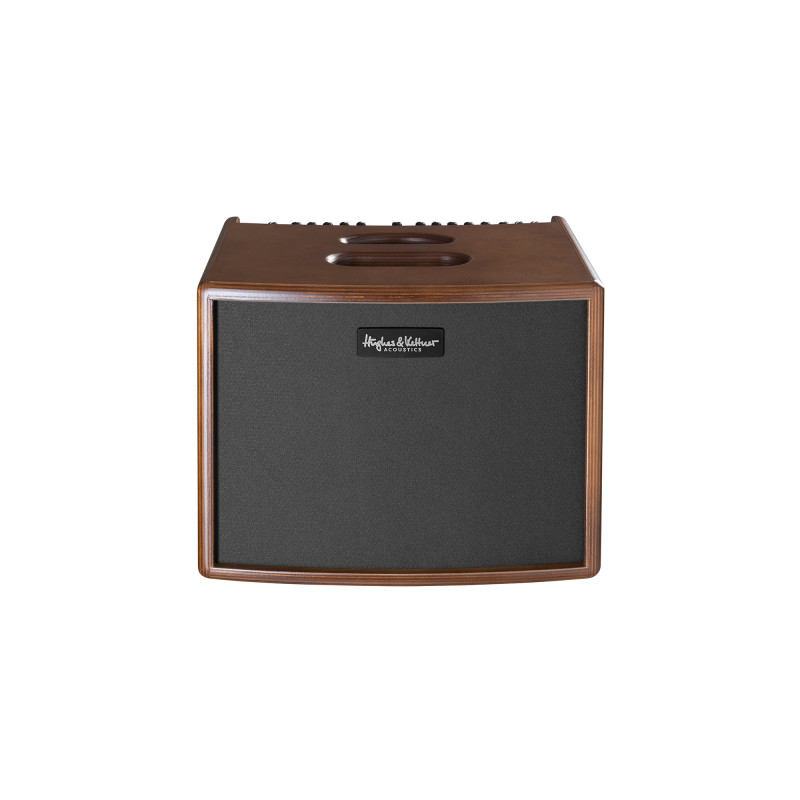

ERA 1 WOOD

Amplificatore combo per chitarra acustica/voce

Canali: CH1, CH2, con ingresso Mic/Instrument (XLR-1/4 jack) Phantom Power (9V/24V), -10 db/Shape/Mute/EQ Mode 2 switch
Controlli: Gain, Bass, Mid, Treble, FX Preset, FX Vol (per ciascun canale), Aux In, Notch(40 180 Hz), Master Volume
Potenza: 250W - amplificatore di potenza custom-made
Speaker: 1x8 Custom made, 1×1 Dome Tweeter
Effetti interni: 16 programmi effetto (Reverb, Chorus, Flanger, Delay, e combinazioni) con parametri regolabili
Ingresso AUX-IN (3,5 mm Mini Jack Stereo) CH3
Loop effetti: parallelo, fx send, input (return) con level CH4
Uscite: DI-Out XLR (Ground/Lift, Pre/Post Eq), Line Out Stereo Unbalanced, Optical Recording Out S/PDIF, Headphones Out, Tuner Out
Tilt Stand incluso (inclinazione 25
/ 35
)
Ingresso footswitch: FS-2 (opzionale) - Switching functions: Amp mute, internal FX mute
Dimensioni: 350 x 285 x 290 mm - Peso: 9,85 kg / 21,7 lbs
Custodia morbida imbottita Hughes & Kettner inclusa
Audio ad alta definizione
Componenti di alta qualità;, accuratamente selezionate
Preamplificatori eccellenti
Convertitori AD / DA di qualità; premium
Canali: CH1, CH2, con ingresso Mic/Instrument (XLR-1/4 jack) Phantom Power (9V/24V), -10 db/Shape/Mute/EQ Mode 2 switch
Controlli: Gain, Bass, Mid, Treble, FX Preset, FX Vol (per ciascun canale), Aux In, Notch(40 180 Hz), Master Volume
Potenza: 250W
Amplificatore di potenza custom-made per una grande headroom
Speaker: 1x8 Custom made, 1×1 Dome Tweeter
Effetti interni: 16 programmi effetto (Reverb, Chorus, Flanger, Delay, e combinazioni), con parametri regolabili
Ingresso AUX-IN (3,5 mm Mini Jack Stereo) CH3
Loop effetti: parallelo, fx send, input (return) con level CH4
Uscite: DI-Out XLR (Ground/Lift, Pre/Post Eq), Line Out Stereo Unbalanced, Optical Recording Out S/PDIF, Headphones Out, Tuner Out
Funzione Auto Sleep
Tilt Stand incluso (inclinazione 25
/ 35
)
Ingresso footswitch: FS-2 (opzionale) - Switching functions: Amp mute, internal FX mute
Compatto e leggero
Dimensioni: 350 x 285 x 290 mm
Peso: 9,85 kg / 21,7 lbs
Custodia morbida imbottita Hughes & Ketter inclusa
Made in Germany

INTERNAL FX
1 Reverb Room Dark Short reverb, heavy HF damping shorter or longer
2 Reverb Room Bright Short reverb, light HF damping shorter or longer
3 Reverb Hall Warm Medium reverb, warm HF damping shorter or longer
4 Reverb Hall Bright Medium reverb, slight HF damping shorter or longer
5 Reverb Church Long reverb, slight HF damping shorter or longer
6 Delay Short Single echo, slapback at 80 ms Delay Time: 20 170 ms
7 Delay Mid Multiple repeats, 170 ms Delay Time: 20 170 ms
8 Delay Long Multiple repeats, 800 ms Delay Time: 170 800 ms
9 Delay Pan Delay DT: 140 ms + 660 ms Delay Time: 140 ms + (140-660) ms
10 Delay + Reverb DT: 170 ms, medium reverb Delay Time: 20 170 ms
11 Chorus Rate: 0,3 Hz Rate: 0,1 10 Hz
12 Chorus + Reverb Chorus no. 11, medium reverb, reverb-Level: 80 % Reverb level
13 Chorus + Delay Chorus no. 11, DT: 170 ms Delay Time: 20 170 ms
14 Flanger Rate: 0,4 Hz Rate: 0,1 10 Hz
15 Flanger + Reverb Flanger no. 14; medium reverb, reverb Level: 80 % Reverb level
16 Flanger + Delay Flanger no. 14; 170 ms Delay Time: 20 170 ms
