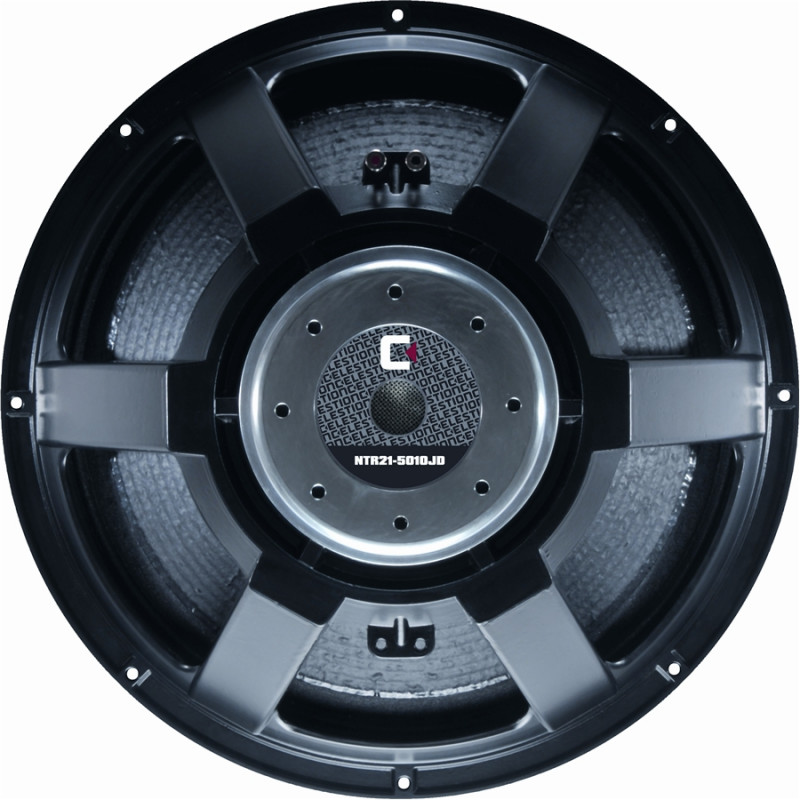

![NTR21-5010JD 1600W 8ohm LF Neodimio NTR21-5010JD 1600W 8ohm LF Neodimio](https://www.musicalbox.com/20334-large_default/ntr21-5010jd-1600w-8ohm-lf-neodimio.jpg)
Riferimento: 15300045
Marca: Celestion
AN3510 35W 8ohm Compact Full Range
AN3510 35W 8ohm Compact Full Range
Voglia di audio Fai da Te? Per il progetto di un Sub con doppio woofer da 21", clicca qui
Design curato, collaudato e messo a disposizione direttamente da Celestion.
Caratteristiche
- 21" neodymium subwoofer offers 1600Wrms (AES standard) power handling and 98dB sensitivity
- 5" high temperature Inside/Outside voice coil efficiently dissipates heat, preventing sensitivity loss through thermal compression
- Double suspension and a "multi-roll" surround provide exceptional linearity at extremes of cone excursion
- Rigid lightweight carbon fibre loaded cone delivers improved performance and faster response
- Intelligent heat management in both chassis and magnet assembly design further minimizes distortion
Specifiche Generali
Nominal diameter: 530mm/21in
Power rating(1): 1600Wrms
Nominal impedance: 8ohm
Sensitivity(2): 98dB
Frequency range: 30-3000Hz
Voice coil diameter: 125mm/5in
Chassis type: Cast aluminium
Magnet type: Neodymium
Coil material: Round copper
Former material: Glass fibre
Cone material: Carbon fibre loaded paper
Surround material: Cloth-sealed
Suspension: Double
Xmax(3): 9mm/0.35in
Gap depth: 12mm/0.47in
Voice coil winding width: 30mm/1.18in
Parametri di Thiele-Small
D: 0.46m/18.11in
Fs: 30.2Hz
Mms: 318.85g/11.26oz
Qms: 5.231
Qes: 0.309
Mmd: 280.52g/9.9oz
Qts: 0.291
Re: 5.36ohm
Vas: 341.43lt/12.05ft3
BI: 32.39Tm
Cms: 0.087mm/N
Rms: 11.55Kg/s
Le (at 1kHz): 2.063mH
Informazioni di Montaggio
Overall diameter: 550mm/21.65in
Overall depth: 254mm/10in
Cut-out diameter: 492mm/19.37in
Mounting slot dimensions: 12.5mm x 8.5mm/0.49in x 0.33in
Number of mounting slots: 8
Mounting slot PCD range: 520-528mm/20.5-20.8in
Unit weight: 12.8kg/28.2lb
Note
(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
(2)Measured on axis at 1W, 1m in 2pi anechoic environment.
(3)Xmax derived from: (voice coil winding width-gap depth)/2.
(4)Small signal parameters measured after unit subjected to pre-conditioning signal.
Per stampare la scheda prodotto, clicca qui
Per una panoramica su tutta la serie Celestion NTR Neodimio, clicca qui
Per consultare e scaricare la brochure originale Celestion Pro Audio, clicca qui
