Riferimento: 621177
Marca: GALLIEN KRUEGER
GK CONO 8 25W 8OHM (MB108)"
GK CONO 8 25W 8OHM (MB108)"
Caratteristiche

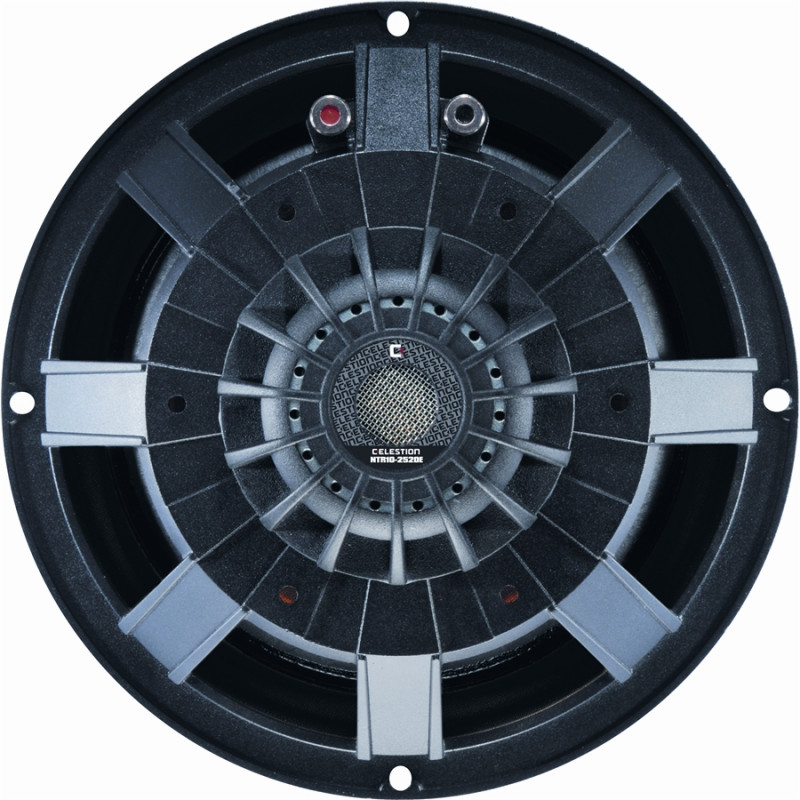

- 10" neodymium mid/bass unit offers 250Wrms (AES standard) power handling and 96dB sensitivity
- 2.5" high temperature Inside/Outside voice coil efficiently dissipates heat, preventing sensitivity loss through thermal compression
- "M-Roll" surround provides progressive excursion control, yielding a smooth response even at extremes of frequency range
- Extremely lightweight design combined with a highly efficient magnet assembly results in exceptional power-to-weight ratio
- Intelligent heat management in both chassis and magnet assembly design further minimises distortion
Specifiche Generali
Nominal diameter: 254mm/10in
Power rating(1): 250Wrms
Nominal impedance: 8ohm
Sensitivity(2): 96dB
Frequency range: 50-3000Hz
Voice coil diameter: 64mm/2.5in
Chassis type: Cast aluminium
Magnet type: Neodymium
Coil material: Round copper
Former material: Glass fibre
Cone material: Kevlar loaded paper
Surround material: Cloth-sealed
Suspension: Single
Xmax(3): 5mm/0.20in
Gap depth: 8mm/0.32in
Voice coil winding width: 17.5mm/0.69in
Parametri di Thiele-Small
D: 0.21m/5.33in
Fs: 52.4Hz
Mms: 46.43g/1.64oz
Qms: 3.008
Qes: 0.334
Mmd: 42.79g/1.51oz
Qts: 0.301
Re: 5.63ohm
Vas: 33.78lt/1.192ft3
BI: 16.05Tm
Cms: 0.199mm/N
Rms: 5.078kg/s
Le (at 1kHz): 0.71mH
Informazioni di Montaggio
Overall diameter: 260mm/10.24in
Overall depth: 113mm/4.45in
Cut-out diameter: 232mm/9.13in
Mounting slot dimensions: 7.5mm x 6.5mm/0.3in x 0.26in
Number of mounting slots: 4
Mounting slot PCD range: 244-247mm/9.6-9.7in
Unit weight: 2.2kg/4.89lb
Note
(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
(2)Measured on axis at 1W, 1m in 2pi anechoic environment.
(3)Xmax derived from: (voice coil winding width-gap depth)/2.
(4)Small signal parameters measured after unit subjected to pre-conditioning signal.
Per stampare la scheda prodotto, clicca qui
Per una panoramica su tutta la serie Celestion NTR Neodimio, clicca qui
Per consultare e scaricare la brochure originale Celestion Pro Audio, clicca qui
