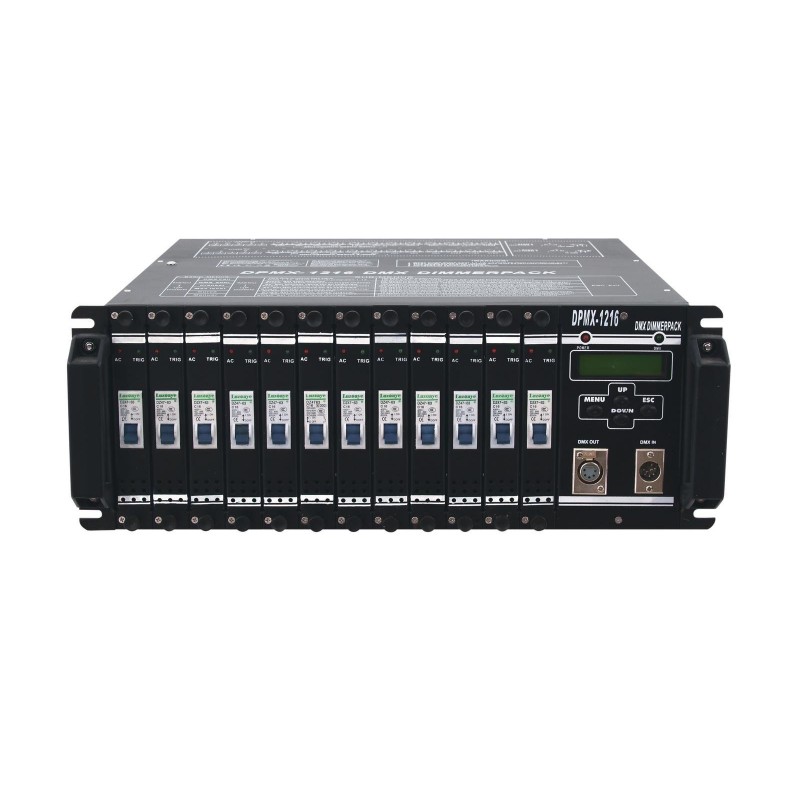

EUROLITE DPMX-1216 DMX Dimmer Pack

12 x 16A dimmer, service friendly modules, connection via terminal block

• 12-channel dimmer pack with up to 16 A output per channel
• Modular design of the individual dimmer modules for quick and easy change
• 3-phase or 1-phase power supply
• DMX512 control or analog control
• Adjustable lamp preheat (0-50%) and limiter function to prolong bulb life
• Curve function for selection of different fade modes
• Dim or switch option assignable to each channel
• DMX Fail function: automatic digital input check to detect DMX signal errors
• 12 built-in programs with adjustable speed
• Manual mode for dimming capability without an external lighting controller
• All modes are displayed via LCD
• Synchronization of several devices possible via DMX
• Automatic circuit breaker per channel (type C)
• Channel outputs on the rear panel via pole connectors
• Rack installation with 4 U
• Only for professional use
• Preprogrammed 12 chasers
• Can be operated in 12 CH mode
• Controlling by Analog 0-10 V; Stand-alone; DMX
• (19") 48.3 cm rack installation 4 U
